Looking for genuine Champion compression gland packings at wholesale prices in Delhi NCR? Shivam Engineering is an Authorized Champion Dealer (since 2002) based directly in Chawri Bazar (Kucha Kashgiri, Sita Ram Bazar). We stock the complete industrial range of high-temperature graphite, virgin PTFE, aramid-Kevlar combination, and pure expanded flexible graphite packings for pumps, valves, autoclaves, and agitators.
Whether you operate a thermal power station, chemical refinery, paper mill, sugar plant, or an OEM pump fabrication unit, we supply factory-certified sealing products with zero delay. Every coil comes with 100% genuine manufacturer guarantee, batch traceability, and test certificates on demand.
Dealer Certificate 2026-27 | GST Compliant | MSME Udyam Certified
View Certificates & CataloguesSelecting the right packing grade depends on your operating temperature, system pressure, shaft peripheral speed (m/s), and fluid pH. Here is our engineering quick-reference guide:
| Style / Grade | Material Composition | Temp Range | Max Pressure | pH Range | Shaft Speed | Typical Industrial Service |
|---|---|---|---|---|---|---|

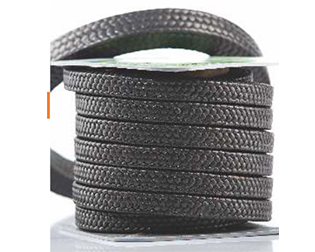

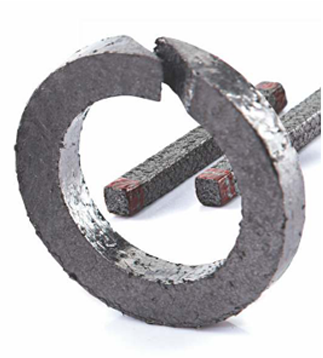

| Style 668 (NM) | Pure Expanded Flexible Graphite ribbon yarn | -200°C to +650°C (Steam) / +450°C (Oxid.) | 250 Bar (Valves) / 30 Bar (Pumps) | 0 – 14 | 20 m/s | Superheated steam, boiler feed pumps, hydrocarbons |
| Style 668 Metallic | Expanded Graphite reinforced with Inconel/SS Wire | -200°C to +650°C | 350 Bar | 0 – 14 | Static / Valves | High-pressure power plant valves, steam turbines, autoclaves |

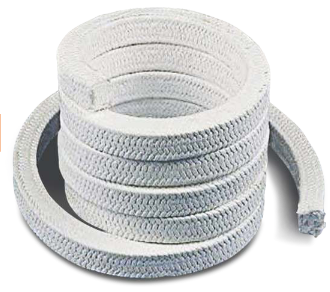

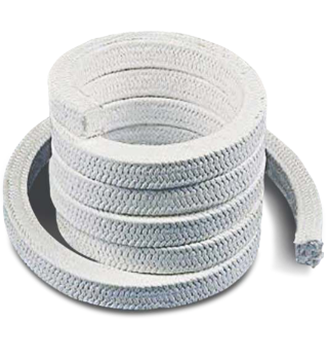

| Style 3 Ultraflon™ | 100% Pure expanded PTFE (ePTFE) multi-filament | -200°C to +260°C | 150 Bar (Valves) / 20 Bar (Pumps) | 0 – 14 | 10 m/s | Strong acids, alkalis, pharma, food processing, oxygen |

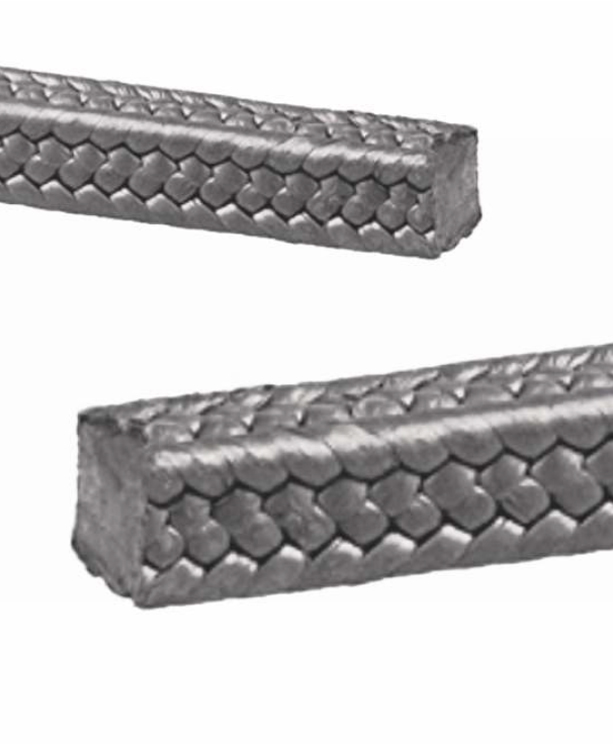

| Style 36 Graflon™ | ePTFE encapsulated with colloidal graphite (GFO style) | -200°C to +280°C | 200 Bar (Valves) / 25 Bar (Pumps) | 0 – 14 | 25 m/s | High-speed slurry pumps, condensate pumps, corrosive fluids |

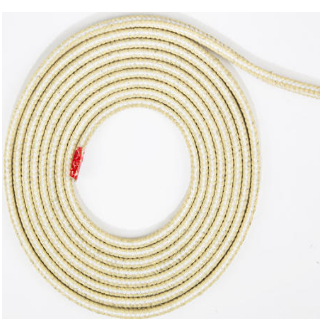

| Style 172 Duralon™ | Aramid (Kevlar) corners + lubricated PTFE running faces | -100°C to +250°C | 250 Bar (Valves) / 200 Bar (Plungers) | 1 – 13 | 15 m/s | Abrasive slurries, fly ash, paper pulp, piston metering pumps |

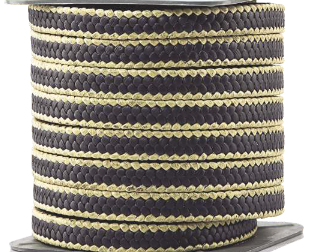

| Style 176 Kombiflon™ | Para-aramid corners + ePTFE-graphite running yarn | -200°C to +280°C | 250 Bar | 2 – 13 | 20 m/s | Mining tailings, black liquor, bauxite slurry, chemical pumps |

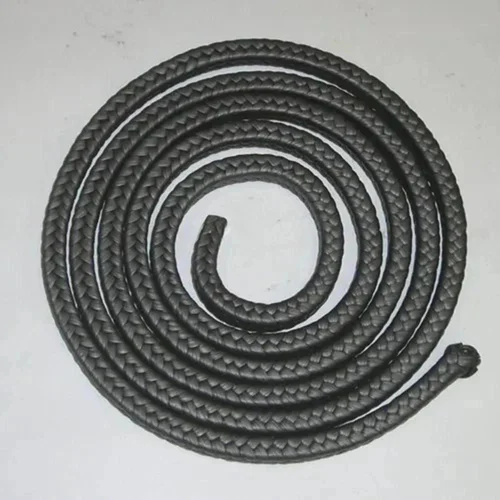

| Style 1916 Metallic | Braided Asbestos with SS Wire & dry graphite lubricants | -100°C to +815°C | 250 Bar | 3 – 12 | Static / Slow | Extreme-temperature furnace valves, butane/propane gas valves |

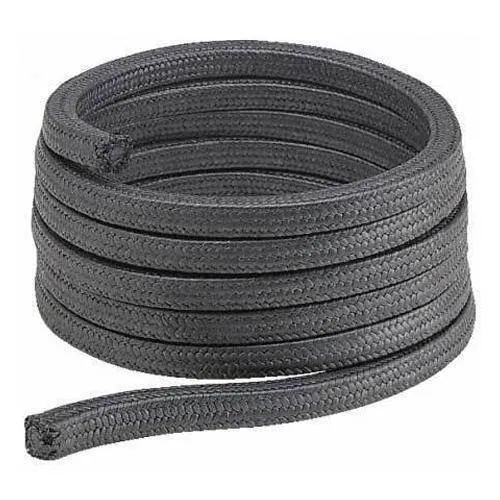

| Style 1800 | IS 4687 Gr. III High-purity Asbestos with micro-graphite | -100°C to +490°C | 150 Bar | 4 – 10 | 10 m/s | Saturated & superheated steam, boiler feed water, hot oils |
| Style 1100 | IS 4687 Gr. II Lubricated & Graphited Asbestos | -100°C to +260°C | 60 Bar | 4 – 10 | 8 m/s | General industrial centrifugal pumps, cold/hot water, brine |
| Style 1000 / AF1000 | Dry Plaited Asbestos / Ceramic Aluminosilicate Rope | Up to +350°C (Asb.) / +550°C / +1250°C (Ceramic) | Static sealing | 4 – 11 | Static | Boiler doors, oven inspection hatches, flue gas ducting |
A pump or valve seal failure causes expensive shutdown hours, shaft sleeve scoring, and safety hazards. Champion gland packings distributed by Shivam Engineering are engineered to meet the demanding requirements of key process sectors:
High-pressure steam lines, soot blower glands, boiler feed pumps, and turbine valve stems operating up to +650°C. Champion Style 668 and Style 1916 deliver zero leakage under intense thermal cycling.
Reactor agitator shafts, acid transfer pumps, ammonia lines, and chlorine valves. Champion Style 3 (PTFE) and Style 36 (Graflon) handle concentrated acids, caustics, and solvents without fiber degradation.
Sugar cane juice pumps, molasses handling, evaporator valves, and boiler feed lines. Champion Style 172 and Style 1800 resist abrasive crystalline particles and deliver long packing life during continuous crushing seasons.
Pulp digesters, black and green liquor lines, bleaching stock pumps, and refiners. Kombiflon Style 176 and Style 36 resist fibrous slurries and prevent expensive shaft wear.
Raw water intake pumps, municipal sewage lines, cooling towers, and chilled water circulation pumps. Style 1100 and Style 3116 provide smooth, low-friction operation with minimal gland adjustments.

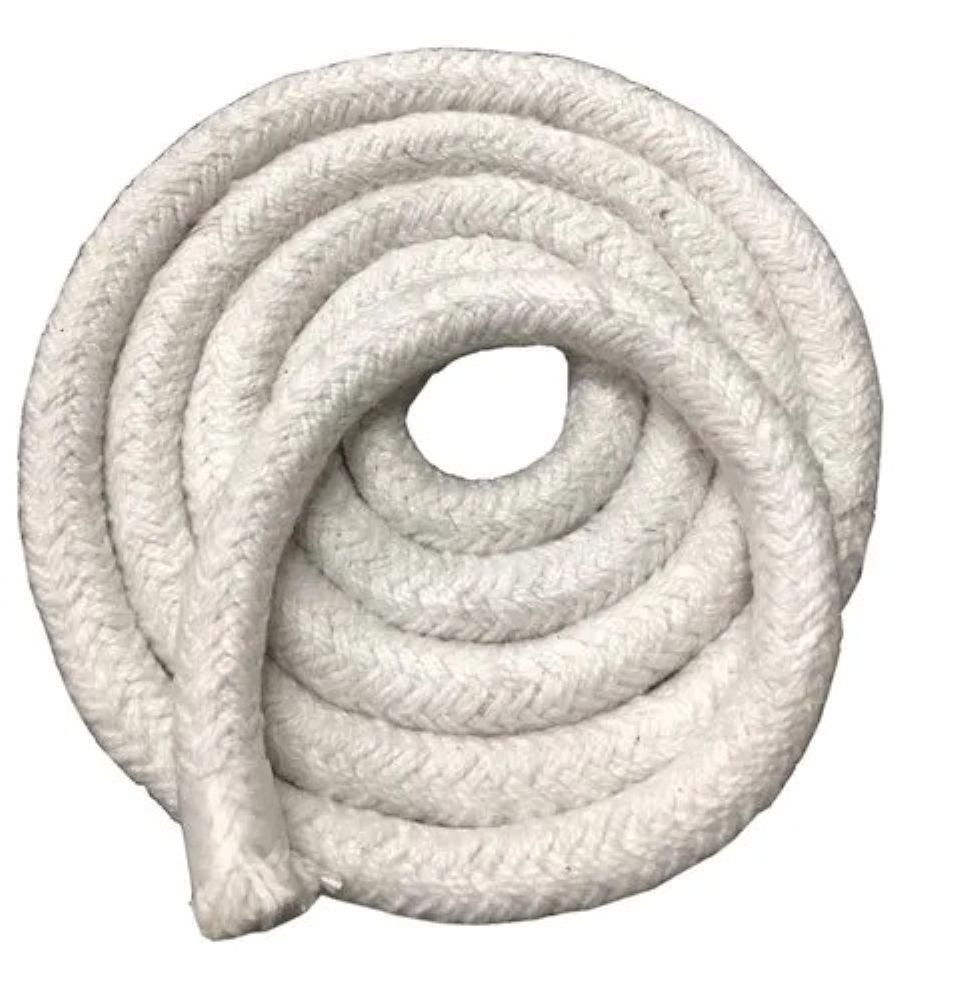

Autoclave covers, blast furnace hot blast valves, coke ovens, annealing furnaces, and oven door seals. Champion Style 1000 white rope and Style 7000 ceramic rope offer unmatched thermal barrier performance.
Chawri Bazar is North India’s undisputed central marketplace for industrial hardware, piping, and fluid sealing components. Located in Kucha Kashgiri, Sita Ram Bazar, Shivam Engineering acts as the primary stocking hub for industrial clients across Delhi NCR and neighboring states.
Answers to common technical, sizing, and procurement questions from plant engineers and contractors across Delhi NCR.
Genuine Champion gland packings come with factory security seals, branded spool labeling, clear style designations (such as Style 1100, 1800, 1916, 3, 36, or 668), and verifiable batch numbers. Counterfeit materials often look similar but fail prematurely under heat or pressure, causing severe shaft scoring. Shivam Engineering is an Authorized Champion Dealer in Chawri Bazar, Delhi since 2002. Every purchase is backed by genuine tax invoices and official Manufacturer Test Certificates (MTC) on request.
For superheated steam and extreme temperatures up to +650°C to +815°C, Champion Style 1916 (SS wire reinforced asbestos) and Champion Style 668 Metallic (pure expanded flexible graphite reinforced with Inconel/SS wire) are the industry benchmarks. For medium-to-high pressure steam valves up to +490°C, Champion Style 1800 graphited packing provides dependable zero-leakage sealing.
For full chemical compatibility across pH 0-14, use Champion Style 3 Ultraflon (100% pure expanded PTFE) or Champion Style 36 Graflon (ePTFE with colloidal graphite for high shaft speeds). For aggressive chemical slurries requiring extreme extrusion resistance, Champion Style 172 Duralon (Aramid-PTFE) and Style 176 Kombiflon are recommended.
Shivam Engineering maintains ready ex-stock in square and round cross-sections from 3 mm (1/8") up to 50 mm (2"). Common fast-moving sizes include 6mm, 8mm, 10mm, 12.5mm (1/2"), 16mm (5/8"), 19mm (3/4"), and 25mm (1"). Packings are available in standard 1 kg, 5 kg, 10 kg spools and custom box quantities.
Yes. As an authorized master stockist and dealer in Chawri Bazar, we supply industrial users, maintenance contractors, and OEMs at direct wholesale commercial rates with tiered volume discounts for bulk plant shutdown orders and annual maintenance contracts (AMC).
We offer same-day dispatch from our central Chawri Bazar warehouse for orders placed before 3:00 PM. We deliver across Delhi NCR including Okhla, Mayapuri, Bawana, Patparganj, Noida, Greater Noida, Faridabad, Ghaziabad, Gurugram, and Sonipat via dedicated courier or on-demand local logistics.
