Looking for genuine CHAMPION Jointing Sheets in Chawri Bazar? Shivam Engineering is an authorized Champion Dealer and leading industrial stockist located at Shop No. 2, Kucha Kashgiri, Sita Ram Bazar, Chawri Bazar, Delhi - 110006.

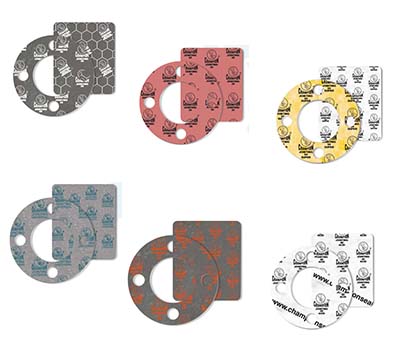

Positioned right in the heart of Delhi's premier engineering hardware corridor—just a 3-minute walk from Chawri Bazar Metro Station (Gate No. 1) near Hauz Qazi Chowk and Ajmeri Gate—we supply the complete spectrum of Champion compressed asbestos fibre (CAF) and eco-friendly non-asbestos (CNAF) gasket jointing sheets to boiler operators, fabricators, MEP contractors, chemical plants, and engineering maintenance teams.
We maintain deep warehouse inventory of Champion gasket sheets in all standardized industrial thicknesses and sheet dimensions for immediate counter pickup or same-day dispatch across Delhi NCR:
| Parameter | Standard Specifications & Availability | Industrial Remarks |
|---|---|---|
| Available Thickness Range | 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm | Precision thickness tolerance conforming to IS:2712 and BS:2815 standards. |
| Standard Sheet Dimensions |
• 1.5 m x 1.5 m (1500 mm x 1500 mm) • 1.5 m x 2.0 m (1500 mm x 2000 mm) • 1.5 m x 4.0 m (1500 mm x 4000 mm) • 1.5 m x 6.0 m (1500 mm x 6000 mm) |
Full sheets supplied in master rolls/crates; cut pieces available for maintenance jobs. |
| Reinforcement Types | Non-Metallic & Metallic (Steel wire gauze / SS wire mesh insertion min. 18 mesh x 30 gauge) | Metallic inserts prevent gasket blowout under high differential pressures and pulsating steam. |
| Surface Treatment | Proprietary Anti-Stick Graphite Coating & Colored Polymer Finish | Prevents gasket fusing to flange faces, enabling rapid clean overhaul during shutdowns. |
Selecting the precise Champion grade ensures zero-leakage performance and prevents downtime. Here is an engineering comparison of the most popular grades available at our Chawri Bazar store:
| Champion Grade | Continuous Temp (°C / °F) | Peak Pressure (Bar / MPa) | Color / Finish | Primary Applications & Service Media |
|---|---|---|---|---|

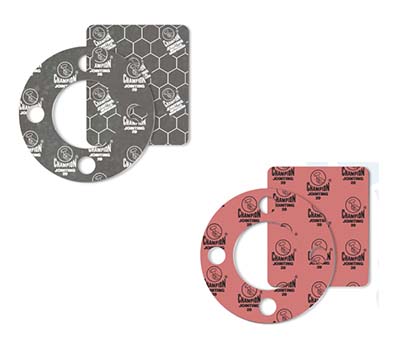

| Style 20 Red (Non-Metallic) | 380°C / 716°F | 35 Bar / 3.5 MPa | Red with Anti-Stick | General service steam, water, condensate, compressed air, and low-pressure plumbing. |
| Style 20 Metallic (Wire Gauze) | 415°C / 779°F | 40 Bar / 4.0 MPa | Graphited Black | Medium-pressure steam, feed water pipelines, and industrial flange joints. |
| Style 39 / Style 59 Oil | 450°C - 550°C | 80 - 150 Bar | Dark Grey / Black | Oils, fuels, diesel engines, lubricants, petrochemical distillates, and hydraulic systems. |
| Style 51 High Pressure | 500°C / 932°F | 100 Bar / 10 MPa | Brown / Graphited | High-pressure saturated steam lines, process vessels, and thermal plants. |

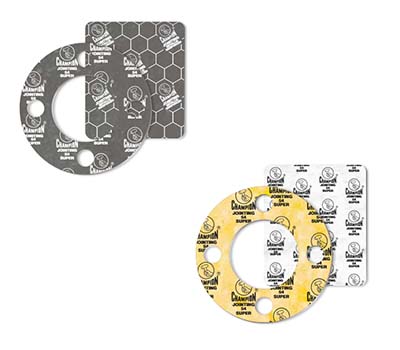

| Style 54 Super Metallic (Boiler) | 600°C / 1112°F | 160 Bar / 16 MPa | Graphited Black (Wire) | Superheated steam boilers, turbine casings, power stations, cylinder head gaskets, alumina & steel plants. |
| Style 54 Super Yellow | 550°C / 1022°F | 150 Bar / 15 MPa | Yellow with Anti-Stick | Superheated steam, hydrocarbon vapors, air compressors, and chemical pipelines. |

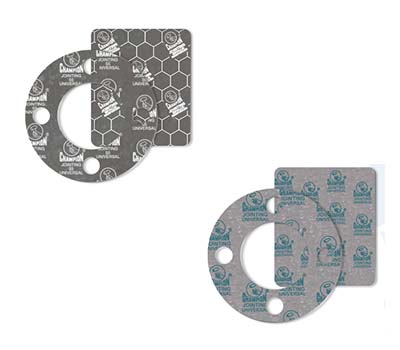

| Style 55 Universal Metallic | 600°C / 1112°F | 225 Bar / 22.5 MPa | Graphited Black (SS Wire) | Extreme cyclic pressure, narrow flange widths, severe mechanical vibrations, and critical boiler headers. |

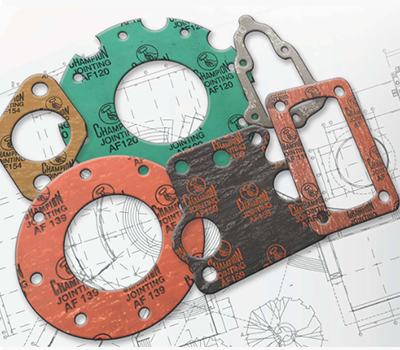

| Champion AF Non-Asbestos (AF 110 to AF 190) | Up to 500°C / 932°F | Up to 170 Bar / 17 MPa | Green, Black, Brown | 100% Asbestos-free (CNAF), BS 7531 Grade-X compliant for pharmaceuticals, food processing, eco-sensitive & export units. |
Don't have on-site gasket cutting facilities? Shivam Engineering offers custom in-house die punch and CNC cutting services right here in Chawri Bazar:
Fabricated to fit precisely inside the flange bolt circle for ASME B16.5, DIN, and BS 10 flanges from 15 NB (1/2") to 1200 NB (48") across Class 150, 300, 600 and PN10 to PN40 ratings.
Precision drilled with exact bolt hole pitch diameter (PCD) for flat-face cast iron, ductile iron, bronze, and PVC/steel flanges, ensuring uniform compression without flange deformation.
Chawri Bazar has stood as North India’s industrial hardware capital for over a century. Shivam Engineering reinforces this legacy by delivering uncompromising authenticity and customer-first service:
Call our Chawri Bazar sales desk or send your cutting schedule on WhatsApp for same-day dispatch with official GST tax invoice.
Chat on WhatsApp (+91 996 898 9735)Technical and commercial answers to guide your gasket sheet selection and procurement.
Shivam Engineering stocks genuine Champion Jointing Sheets in thicknesses ranging from 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, up to 5.0mm. Standard sheet dimensions include 1.5m x 1.5m, 1.5m x 2.0m, 1.5m x 4.0m, and 1.5m x 6.0m in both Non-Metallic and Wire-Reinforced Metallic executions.
Style 20 Red is designed for general-purpose steam, water, condensate, and air service up to 380°C and 35 bar (415°C / 40 bar in metallic). Style 54 Super Metallic is wire-reinforced for high-pressure superheated steam boilers, turbines, and cylinder heads up to 600°C and 160 bar. Style 55 Universal Metallic features heavy-duty stainless steel wire gauze reinforcement built for extreme cyclic pressures up to 225 bar and 600°C where mechanical vibrations and narrow flanges exist.
Yes. We operate custom gasket die-cutting and CNC fabrication facilities at our Chawri Bazar workshop. We fabricate Full Face (FF) gaskets with precision bolt holes and Raised Face / Ring (IBC) gaskets conforming to ASME B16.21, BS 10, DIN PN10-PN40, and custom customer drawings from 15 NB to 1200 NB.
Our sales counter and ready warehouse are at Shop No. 2, Ground Floor, 3319 & 3321, Kucha Kashgiri, Sita Ram Bazar, Chawri Bazar, Delhi - 110006. We are situated just 250 meters (a 3-minute walk) from Chawri Bazar Metro Station (Gate No. 1) near Hauz Qazi Chowk. We are open Monday to Saturday from 10:00 AM to 7:30 PM (Sundays closed).
Yes. We provide same-day tempo dispatch and express courier delivery across Delhi NCR, including major manufacturing and industrial estates such as Okhla, Bawana, Mayapuri, Naraina, Patparganj, Noida, Greater Noida, Faridabad, Ballabgarh, Kundli, and Gurugram.
Yes, we stock the complete Champion Non-Asbestos (CNAF) lineup including Style AF 110 (water/steam), AF 120 (general industrial), AF 154 (high-pressure, BS 7531 Grade-X compliant), AF 159 (oil & fuel resistant), AF 160 (acid resistant), and AF 190 (high-temperature graphite composite up to 500°C) for green building, pharmaceutical, export, and food manufacturing units.
